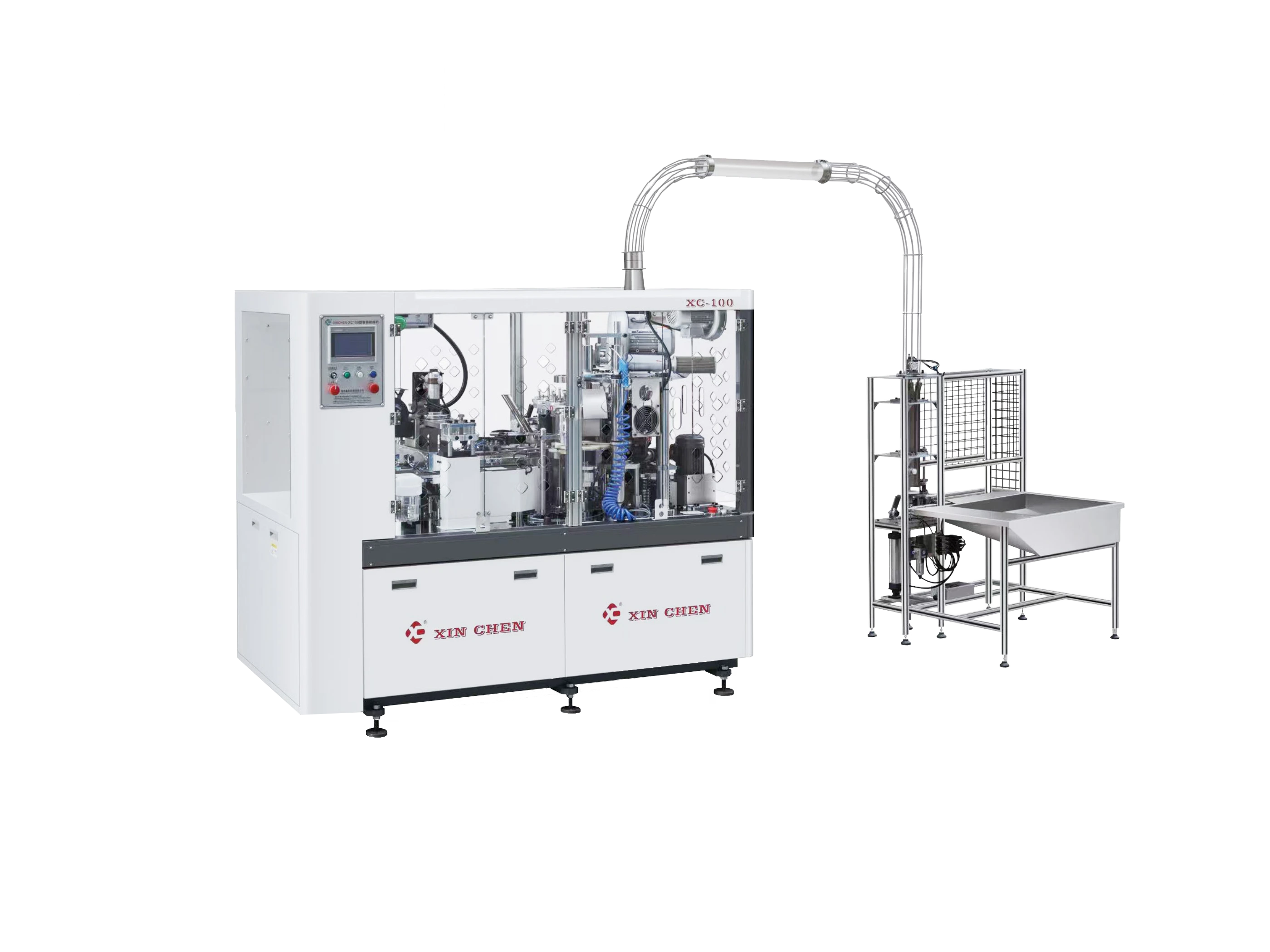

XC-100 Intelligent Medium-speed Paper Cup Making Machine
share
Parameter
Product Range
：
D1 Φ43–90mm, H 36–115mm; D2 Φ31.6–62mm, h 4–9mm
Max Capacity
：
100pcs/min
Paper grammage
：
150–250gsm (Single-PE)、150–280gsm (Double-PE)
Rated power
：
13KW 380V 50Hz
Air Supply
：
0.4m³/min 0.4–0.6 mpa
Machine weight
：
2400KG
Wooden case dimension
：
2200×1100×1950mm (LWH)
Detail
XC-100 Intelligent Medium-speed Paper Cup Making Machine adopts a fully automatic continuous production process, integrating eight major processes: paper feeding, sealing, oil injection, bottom punching, heating, embossing, curling, and unloading. It realizes the integrated forming of PE-coated paper cups, with no manual intervention required throughout the entire process, ensuring high efficiency and stability. It can flexibly produce various types of paper cups, including universal market cups, custom advertising cups, and tasting cups, meeting the needs of multiple scenarios such as catering, marketing, and exhibitions.
FAQs
What are the advantages of using an Ultrasonic Sealing System?
How does the Automatic Lubrication System improve machine lifespan?
What types of paper can this machine process?
Why is the PLC Control System essential for modern production?
How does the machine ensure consistent rim curling quality?
