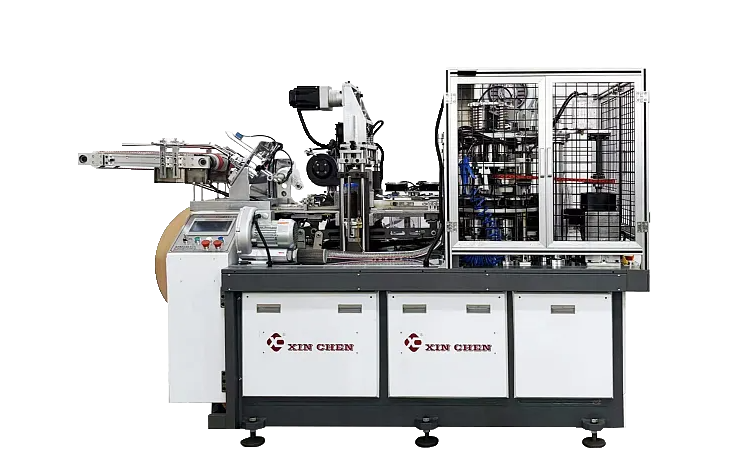

XC-150S Intelligent High-speed Paper Cup Making Machine
share
Parameter
Product Range
：
D1 Φ50–90mm,H 45–135mm,D2 Φ36–70mm,,h 4.5–10mm
Max Capacity
：
150pcs/min
Paper grammage
：
200–350 gsm (0.28–0.47mm)
Rated power
：
3-phase 380V ,22KW
Air Supply
：
0.4m³/min,0.6–0.8MPa
Machine weight
：
2900KG
Wooden case dimension
：
2310×1450×1950mm (LWH)
Detail
XC-150S Intelligent High-speed Paper Cup Making Machine adopts an integrated frame with full gear and cam transmission. Key positions are fitted with Japanese
IKO bearings and forged steel cams. The automatic oil lubrication system ensures stable operation and low vibration. Equipped with PLC control, touch screen, servo bottom paper feeding and photoelectric tracking, it supports intelligent operation. Ultrasonic sealing with three heating guns delivers fine forming effect and is suitable for double PE cups. Core molds are made of quenched die steel and 7075 aviation aluminum for long service life.
FAQs
What are the advantages of using an Ultrasonic Sealing System?
How does the Automatic Lubrication System improve machine lifespan?
What types of paper can this machine process?
Why is the PLC Control System essential for modern production?
How does the machine ensure consistent rim curling quality?
