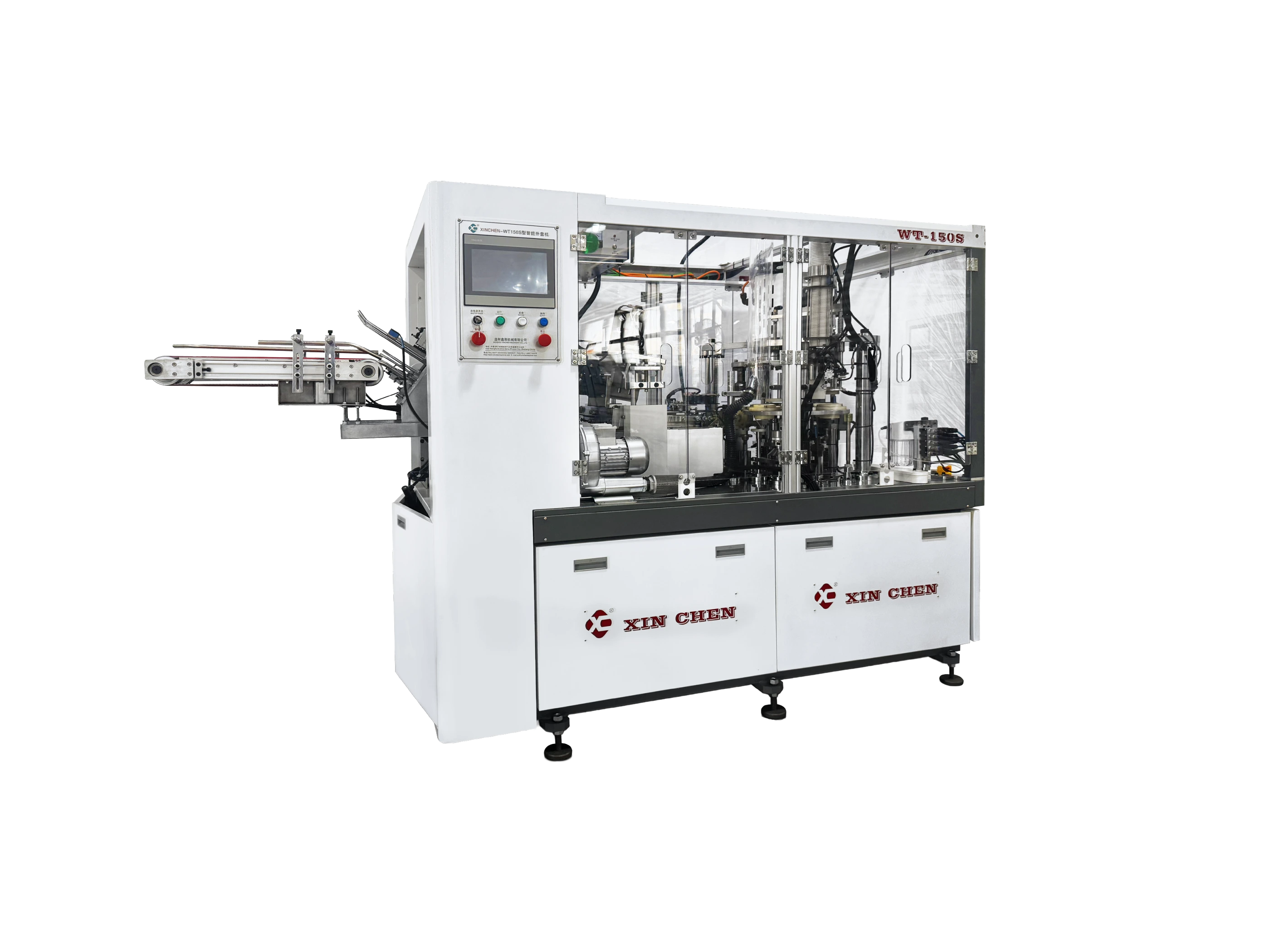

XC-WT150S Servo External Laminating Machine
share
Parameter
Product Range
：
(D1) Φ50–90mm (H) 45–135mm；(D2) Φ36–60mm (h) 4.5–10mm
Max Capacity
：
Hollow/Flat-laminating：150pcs/min,Double-wall corrugated：130pcs/min
Paper grammage
：
0.2825–0.475mm
Rated power
：
3phase 380V 5KW
Air Supply
：
0.4 m³/min, 0.6–0.8 mpa
Machine weight
：
2200 KG
Wooden case dimension
：
2200×1350×2000mm (LWH)
Detail
XC-WT150S Servo External Laminating Machine adopts PLC + servo motion control system, equipped with full-process photoelectric tracking monitoring and servo glue dispensing. Automatic oil bath lubrication prolongs machine service life and improves operational stability. It is applicable for molding outer sleeves of 4–16oz cups, being premium equipment for outer sleeves of corrugated cups, milk tea cups and coffee cups.
FAQs
What are the advantages of using an Ultrasonic Sealing System?
How does the Automatic Lubrication System improve machine lifespan?
What types of paper can this machine process?
Why is the PLC Control System essential for modern production?
How does the machine ensure consistent rim curling quality?
